    16-18.8g/Cm3 Tungsten Copper Alloy Sheet Plate

    Ask Lasest Price
    Brand Name : JX
    Model Number : Tungsten Alloy Plate Tungsten Copper Alloy Sheet
    Certification : ISO
    Price : according to actual products
    Payment Terms : T/T
    Supply Ability : 300kgs month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    16-18.8g/Cm3 Tungsten Copper Alloy Sheet Plate

    Tungsten Alloy Plate Tungsten Copper Alloy Sheet


    Tungsten Alloy Plate Tungsten Copper Alloy Sheet specification:
    1) WCu (W70Cu, W75Cu, W80Cu, W85Cu, W90Cu, etc)
    2) Density:16-18.8g/cm3
    3) Size:As your need
    Plate: (0.04-50)* W X L
    rod-Dia.1.5 - 200 X 300mm Long

    4) Flatness tolerance:<4um
    5) Roughness:Ra1.6-Ra0.8
    6) Surface: polished, ground.

    2. Property Brief Introduction
    Tungsten Alloy Plate Tungsten Copper Alloy Sheet is a composite of tungsten and copper, with both tungsten low expansion characteristics, but also has copper of high thermal conductivity properties, and the tungsten and copper in the thermal expansion coefficient and thermal conductivity can be adjusted with the W-Cu composition, also the composite can be machined to various shape, these features make the application of this composite with great convenience.
    1) high melting point, high strength,
    2) smooth and clean surface,
    3) good conductions, small linear expansion coefficient and good heat-resistance

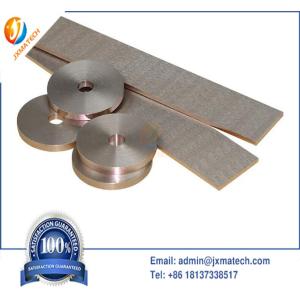

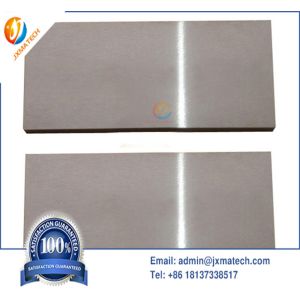

    Tungsten Alloy Plate Tungsten Copper Alloy Sheet Picture:
    16-18.8g/Cm3 Tungsten Copper Alloy Sheet Plate16-18.8g/Cm3 Tungsten Copper Alloy Sheet Plate

    3. Chemical composition

    MaterialWCu%
    Tungsten Content
    Hardness
    HB
    g/
    Density at 20ºC
    W/M.K
    Thermal conductivity at 25ºC
    (10-6/k)
    Coefficient of thermal expansion at 20ºC
    W90Cu109026017.0180-1906.5
    W85Cu158524016.4190-2007.0
    W80Cu208022015.6200-2108.3
    W75Cu257519514.9220-2309.0
    W50Cu505012512.2310-34012.5
