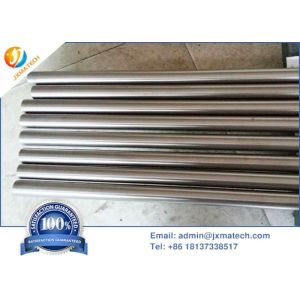

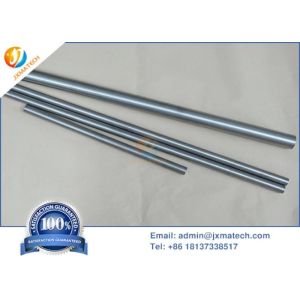

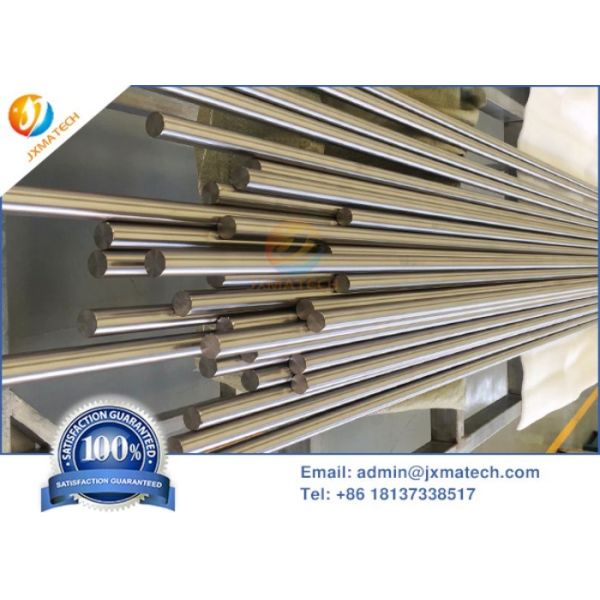

8.36g/Cm3 Kovar Rod Kovar Alloy K Uns K94610 With Good Low Temperature Structure Stability

    Buy cheap 8.36g/Cm3 Kovar Rod Kovar Alloy K Uns K94610 With Good Low Temperature Structure Stability from wholesalers

    Buy cheap 8.36g/Cm3 Kovar Rod Kovar Alloy K Uns K94610 With Good Low Temperature Structure Stability from wholesalers
    • Buy cheap 8.36g/Cm3 Kovar Rod Kovar Alloy K Uns K94610 With Good Low Temperature Structure Stability from wholesalers
    • Buy cheap 8.36g/Cm3 Kovar Rod Kovar Alloy K Uns K94610 With Good Low Temperature Structure Stability from wholesalers
    • Buy cheap 8.36g/Cm3 Kovar Rod Kovar Alloy K Uns K94610 With Good Low Temperature Structure Stability from wholesalers
    • Buy cheap 8.36g/Cm3 Kovar Rod Kovar Alloy K Uns K94610 With Good Low Temperature Structure Stability from wholesalers

    8.36g/Cm3 Kovar Rod Kovar Alloy K Uns K94610 With Good Low Temperature Structure Stability

    Ask Lasest Price
    Brand Name : JINXING
    Model Number : Kovar Rod
    Certification : ISO 9001
    Price : 15~50USD/kg
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 100000kgs/M
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    8.36g/Cm3 Kovar Rod Kovar Alloy K Uns K94610 With Good Low Temperature Structure Stability

    Kovar Rod Alloy K / K94610 / ASTM F15


    Kovar rod is made up of 29% nickel, 17% cobalt, .2% silicon, .3% manganese and 53.5% iron. Kovar is known for its low coefficient of thermal expansion. Kovar end uses are usually glass sealing in the electronics industry.


    Alloy NameTrade NameUNS #British SpecAmerican SpecGerman SpecFrench Spec
    Alloy KKovar
    Nilo K
    Rodar
    UNS K94610ASTM F15
    ASTM F26
    AMS 7726
    AMS 7727
    MIL-I-23011C Class 1
    1.3981AFNOR NF A54-30

    • Description

    Kovar Foil SPECIFICATION

    ASTM F15 , UNS K94610, Werkstoff Nr 1.3981 , DIN 17745 , MIL-I23011 Class 1, AFNOR NF A54-301, S.E.W 385


    Heat Treatment:

    For the performance test sample of expansion coefficient and low temperature tissue stability specified in the standard, heat it to 900 ℃± 20 ℃ in hydrogen atmosphere for 1h, then heat it to 1100 ℃± 20 ℃ for 15min, and cool it to below 200 ℃ at the speed of no more than 5 ℃ / min.


    Material :

    RussiaUSAEnglandJapanFranchGermany
    29HKkovarNilo KKV-1Dilvar P0Vacon 12
    29HK-BRodar
    Techallony Glasseal 29-17
    TeleasealKV-2
    KV-3
    Dilver P1Silvar

    Content Composition %

    CPSMnSiCuCrMoNiCoFe
    Less than
    0.030.020.020.50.30.20.20.228.5-29.516.8-17.8Rest

    Physical properties

    Densityg/cm38.25
    Curie Point430
    Resistivityμ· m0.48
    Tensile strength MpaCold state
    Annealing520
    Yield strength MpaCold state
    Annealing330
    Elongation %Cold state
    annealing30

    TypeSize/mmDeliver State
    Bar5.0-8.0Cold Drawn
    8.0-30.0Hot rolling
    30.0-180.0Hot forging
    Plate3.5-30.0Hot rolling
    30.0-40.0Hot forging
    Strip0.2-3.5Cold rolling
    Flat wire0.5-5.0Hot rolling
    Round wire0.1-5.0Cold Drawn
    CapillaryOD8.0-1.0,ID0.1-8.0Cold Drawn
    PipeOD120-8.0, ID8.0-129Cold drawn


    The linear expansion coefficient of the kovar alloy is similar to that of borosilicate glass at 20-450 ℃, the Curie point is higher, and the alloy has good low temperature structure stability. The oxide film of the alloy is compact and can be well infiltrated by glass. It does not interact with mercury and is suitable for use in instruments containing mercury discharge. It is the main sealing structure material of electric vacuum device.
