    90 Platinum 10 Iridium Wire

    Ask Lasest Price
    Brand Name : JINXING
    Model Number : 90 Platinum 10 Iridium Wire
    Certification : ISO 9001
    Price : 40~150USD/grams
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 5000kgs/M
    Delivery Time : 5~15days
    • Product Details
    • Company Profile

    90 Platinum 10 Iridium Wire

    90 Platinum 10 Iridium Wire description

    The alloy has been used in "non-standard" thermocouples, electrical contacts and electrodes in medical research. This alloy is harder and mechanically stronger than platinum.
    This wire has a composition of 90% platinum and 10% iridium and is widely used in the assembly of microelectrode probes. Iridium is a platinum group metal that is dense and hard and adds strength to the wire. A 90/10 platinum-iridium alloy with 10% iridium can be cast, welded, machined, and stamped; it is ductile and ductile; it can be work hardened; and it does not oxidize easily. Alloys are generally produced by vacuum arc melting or induction melting.
    Other uses of platinum-iridium alloys include electrical contacts, spark plugs, electric explosive devices, medical leads and electrodes, thermistors, catalytic applications, jewelry, pen tips, surgical pins.
    Some uses of platinum-iridium alloys include pacemakers, which are used to treat heart conditions that cause slow or irregular heartbeats, and typically contain at least two platinum-iridium electrodes through which electrical impulses are transmitted to stabilize the heartbeat.

    90 Platinum 10 Iridium Wire Specification


    Item
    Platinum/Iridium - Wire(Pt90/Ir10)
    Function
    Medical research and lab.
    Melting point
    1800
    Hardness - Brinell
    130-190
    Tensile strength
    380-620
    Density
    21.56
    Thermal Conductivity
    0.716 W/cm/K 298.2 K
    Electrical Resistivity
    10.6 microhm-cm 20°C
    Material
    Melting point °C
    Density g/cm
    Pure Pt --- Pt(99.99%)
    1772
    21.45
    Pure Rh--- Rh(99.99%)
    1963
    12.44
    Pt-Rh5%
    1830
    20.70
    Pt-Rh10%
    1860
    19.80
    Pt-Rh20%
    1905
    18.80
    Pure Ir --- Ir(99.99%)
    2410
    22.42
    Pt-Ir5%
    1790
    21.49
    Pt-Ir10%
    1800
    21.53
    Pt-Ir20%
    1840
    21.81
    Pt-Ir25%
    1840
    21.70
    Pt-Ir30%
    1850
    22.15

    other products

    • Iridium wire
    • Iridium rod
    • Iridium crucible
    • Iridium tube
    • Iridium sphere end
    • Iridium sheet
    • Irdiium foil
    • Iridium ribbon

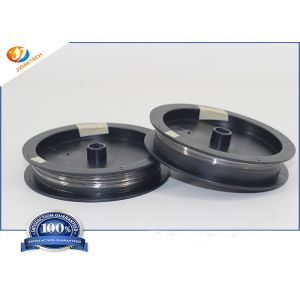

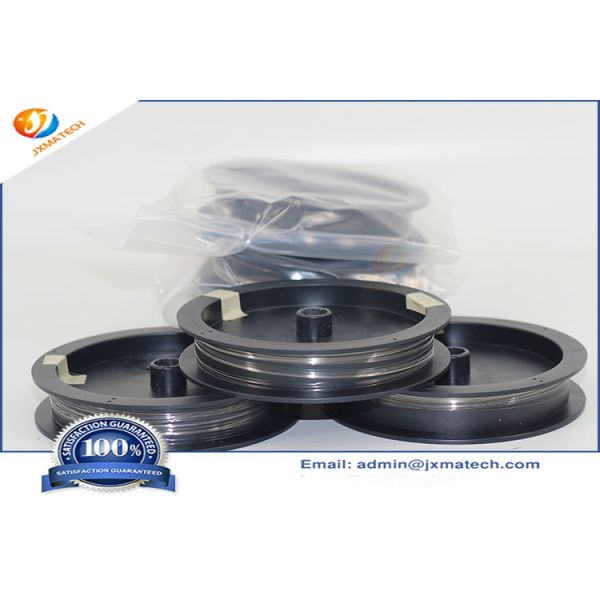

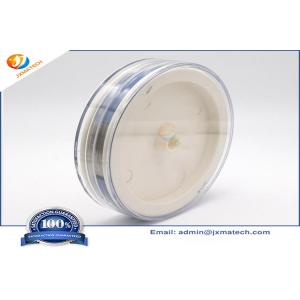

    90 Platinum 10 Iridium Wire Picture:
